ARDIC-2 Model Prefabric Wooden House

The ARDIC-2 Model Prefabricated Wooden House is another one of our standard wooden houses.

Its interior architectural layout is completely the same as the ARDIC-1 Model wooden house. The only difference is the roof system and the location of the entrance door. The entrance door of the ARDIC-2 Model prefabricated wooden house is on the side.

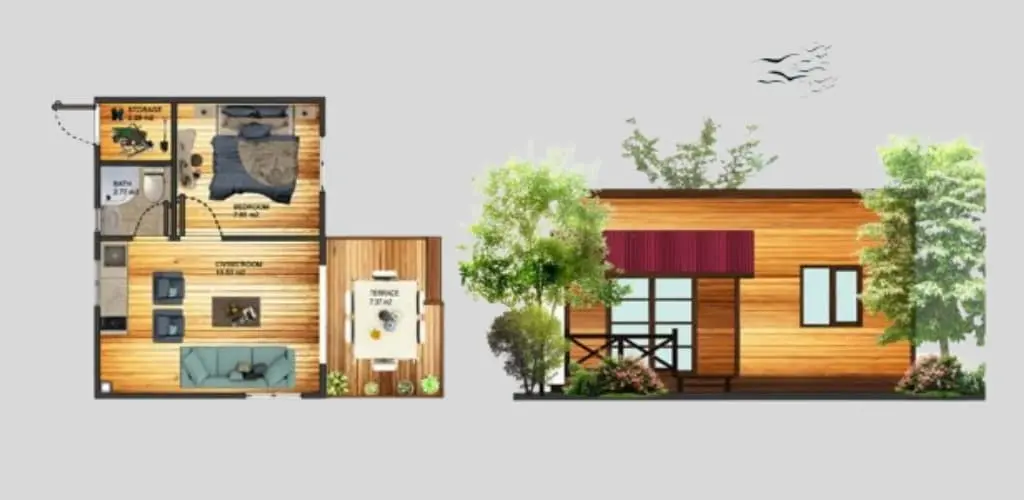

It is a single-story house. In addition to a bathroom, kitchen, living room, and a small storage room at the back, there is also a bedroom. As with the Yonca Model, there is a terrace at the front. The terrace area is smaller than that of the ARDIC-1 Model house.

The total area, including the terrace is 38.14 m2.

Cross Closed Ares 30,77m2
Terrace Area 7,37m2
TOTAL Area 38,14m2

Technical Specifications

Structural System Wood Timber
Foundation Type Reinforced Platform or Wooden Pile
Exterior Cladding Wooden Paneling or
Gypsum board coated with waterproof fiberglass.
Interior Cladding Wooden Paneling or Gypsum board
Flooring The spaces between the grilles are insulated and
covered with wooden planks.
Thermal Insulation Materials Stone wool calculated according to Rd value.

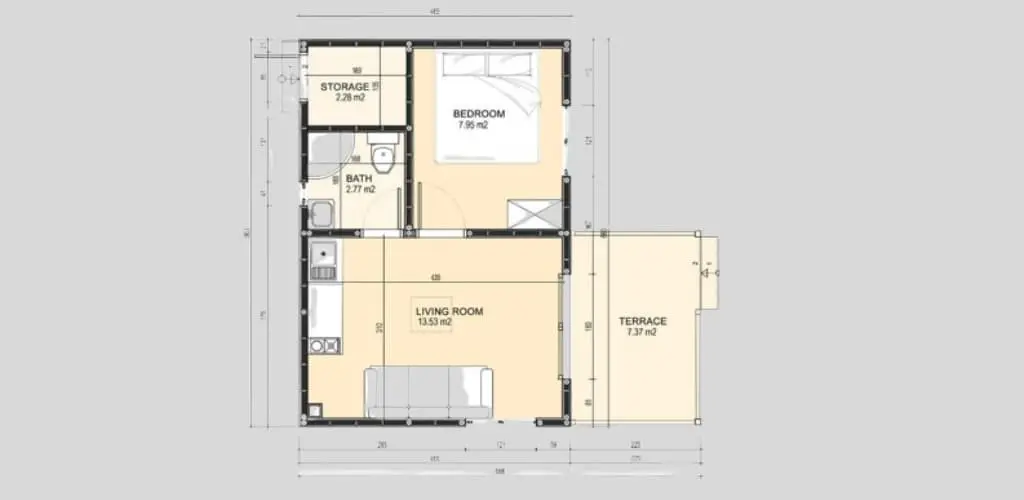

Technical Drawing
